Title: Renault 5 GT Turbo Rebuild


C5 SWH - November 19, 2008 07:46 PM (GMT)
As Most of you know i brought the Renault 5 in the summer and love it to bits. :P :D
Ive decided as a project over the winter months i will rebuild the engine. I didnt want to be car less so decided to keep a eye out on the forums for a engine to come up. Managed to source one last week, Engine, box and turbo all on 68k 150 delivered bargain :dj: B)

Yesterday it arrived so the fun now begins :D :D
user posted image
user posted image
user posted image
user posted image


This will all be done over next few months in my spare time, not sure how many months :unsure: :rolleyes: :D

Will keep you all updated with how im getting on, and im sure i will need your knowledge along the way :ph43r:

Chopper - November 19, 2008 07:47 PM (GMT)
Did i read that right 150 ?

Adz - November 19, 2008 07:52 PM (GMT)
Jesus Christ, that IS cheap!! D0id they say why they were selling it?

Old School - November 19, 2008 07:53 PM (GMT)
QUOTE (Chopper @ Nov 19 2008, 07:47 PM)
Did i read that right 150 ?

I was thinking the same thing..... :rolleyes:

Bargain

C5 SWH - November 19, 2008 08:01 PM (GMT)
yeah 150, :dj:

The car was rear ended so he was breaking it, I missed out on few other goodies he had forsale :(

Chopper - November 19, 2008 08:03 PM (GMT)
Jesus mate thats a great deal - whats the turbo like for play and condition ?

DumpyDave - November 20, 2008 08:53 AM (GMT)
Nice find. It looks really small :haha:

Are you going for a standard rebuild or a high spec build?

What kind of goodies will you be getting for it?

It's a slippery slope though :unsure:

LEE69 - November 20, 2008 11:16 AM (GMT)
Nice, bloody bargain mate!

Pattycake - November 20, 2008 12:41 PM (GMT)
Wow get some pics up of the car itself!! These are a rare classic these days and its good to see one saved and given love and attention. :)

Adz - November 20, 2008 01:14 PM (GMT)

Keg_GT - November 20, 2008 06:26 PM (GMT)
it looks so dinky haha great bargin mate looking forward to seeing this rebuild

C5 SWH - November 21, 2008 07:17 PM (GMT)
QUOTE
whats the turbo like for play and condition ?

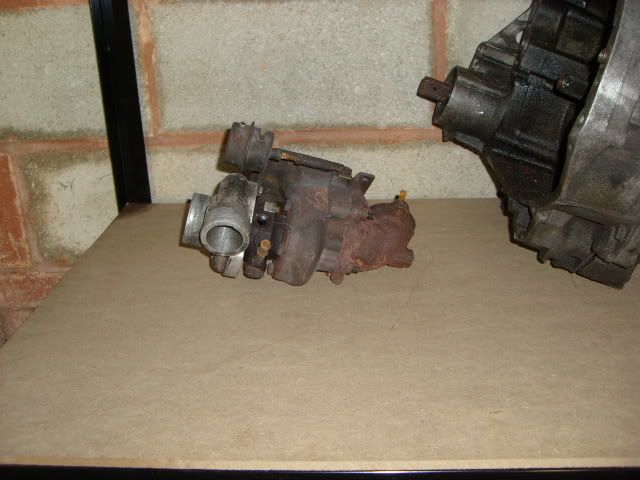

Looks pretty good, there is a little play in the shaft but no more than normal, When i brought the engine i was going to sell the turbo as im getting a new one when the engine is finished but i may keep it as a spare :ph43r:

QUOTE
Are you going for a standard rebuild or a high spec build?

Mixture of both to be honest, was origanlly going to upgrade the internals, but what ive read they seem to be pretty bullet proof.

On the shopping list along with the usual items will be a new t25 turbo, cam,lightened flywheel, piper valve springs and hopefully the head will have a little work done on it and few other bits.

Talking about headwork, can anyone recomend a place i can take it locally?

will keep you all posted on any progress
B)



DumpyDave - November 21, 2008 09:13 PM (GMT)
Depends what you want done to the head. Bobby's engines in stoke gabriel is quite good. He'll re-lap the valves in for you and give it a clean up and polish. He can be grumpy though so you have to get him on a good day :rolleyes:

Sounds like you done some research which is important before wasting money on things you don't need. Good luck B)

Are you going for a multi-layered shim head gasket? One less thing to worry about if your going to crank the boost up a bit.

C5 SWH - November 23, 2008 07:24 PM (GMT)
Spent a little time on it today, B)

Started by taking to rocker cover off, now i get the first look of what its like in side :ph43r:
user posted image

Next remover rocker shaft and push rods.
user posted image
user posted image

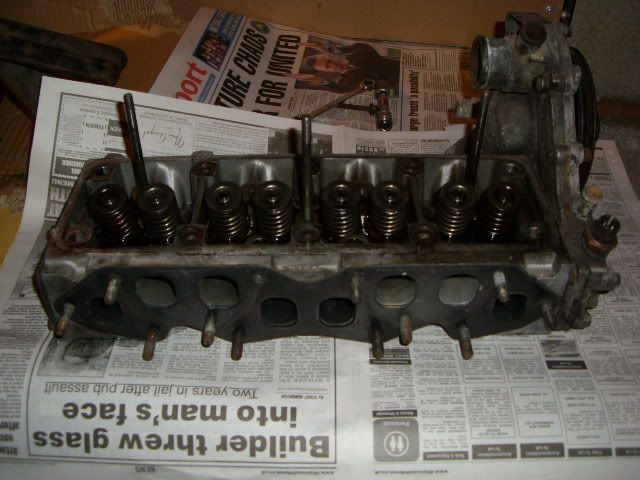

Now time to loosen headbolts, little tap eitehr side and off it comes.
user posted image

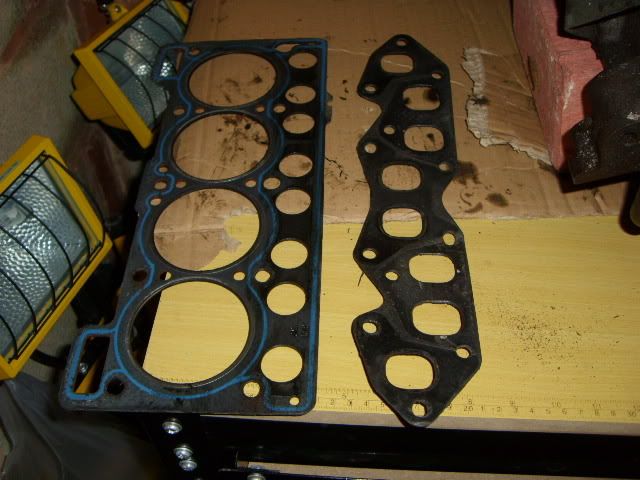

Everything seems ok so far, like most R5 it looks as if its had a new head gasket in the past, all gaskets look in pretty good nick.
user posted image

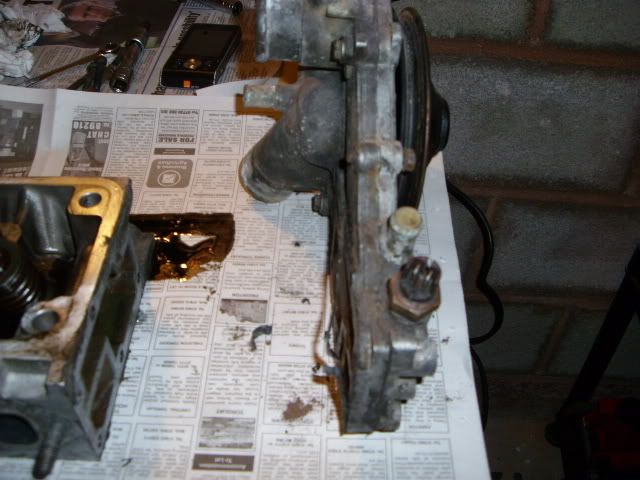

Next seperated the waterpump off the head.
user posted image
user posted image

Trying to keep things stored tidy and organised, i wonder how long that will last :rolleyes: :P :haha:
user posted image
user posted image

Thats it for today :D

Chopper - November 24, 2008 05:48 PM (GMT)
Good write up matey - its going to be a beast

DumpyDave - November 24, 2008 08:13 PM (GMT)
oilly fingers at last :haha:

C5 SWH - December 3, 2008 05:27 PM (GMT)
Spent some more time on the engine again today, B)

First job was to remove the flywheel

user posted image

Next was to remove the oil breather, sump and then remove the oil pump

user posted image
user posted image
user posted image
user posted image

Then i removed the bottom pulley to enable me to get the timing chain cover off

user posted image

Removed the cover, chain tensioner and the the chain and sprockets themselves

user posted image
user posted image
user posted image

Now onto the camshaft, to remove this i had to remove the distributor and drivegear. Then out comes the camshaft and cam followers

user posted image
user posted image
user posted image

Then remove pistons and liners

user posted image
user posted image
user posted image
user posted image

Now onto the crankshaft, remove the main bearing caps, remove the dipstick which is conected to bearing 2

user posted image
user posted image

Then remove the crankshaft (i forgot to take a picture of
this :huh: :huh: :rolleyes: )

user posted image
user posted image

Now left with the block which is totally stripped and ready to be cleaned and painted

user posted image
user posted image
user posted image

Got a collection of bits now and amazingly im still orgainsed :D B)

user posted image
user posted image
user posted image




Keg_GT - December 3, 2008 05:32 PM (GMT)
looking very good i like it this is the simple bit putting it back together will be the fun part haha

DumpyDave - December 4, 2008 09:13 AM (GMT)
Looking good mate. Is everything thats going back into the block going to be reconditioned/replaced? Glad you're keeping everything in order as it's important (if using the same parts) that everything goes back in how it came out ie the bearings, shells pistons and liners etc match up with the same con rod,piston and part of the crank. If it's all being replaced no problem.

Still keeping the mods quiet though :ph43r:


B)

robinxr4i - December 4, 2008 11:12 AM (GMT)
Great work mate, gotta love how simple the old OVH engines are! Wish I had the time, money and space to build a low compression pinto for the sierra oh well pipe dreams :haha:

Stig of the Dump - December 7, 2008 01:27 AM (GMT)
Good write up. Nice one user posted image

C5 SWH - December 17, 2008 04:54 PM (GMT)
Had a parcel arrive today :P :D :D

My new pistons, rings, pins and liners :dj:

user posted image

user posted image

user posted image

will keep you posted B)

Chopper - December 17, 2008 09:00 PM (GMT)
Good stuff matey :)

DumpyDave - December 18, 2008 07:55 AM (GMT)
Nice one mate. Standard bore? Are you sticking with standard rods?

Hope Santa has some treats on board :D

C5 SWH - December 18, 2008 08:12 PM (GMT)
QUOTE (DumpyDave @ Dec 18 2008, 07:55 AM)
Nice one mate. Standard bore? Are you sticking with standard rods?

Hope Santa has some treats on board :D

Yeah kept to standard bore size and compression ratio, from what ive read and been told it seems to be the best set up for the 5 and also gives good reliablity.

I think im going to keep the standard rods. Ive been adviced to get them balanced along with the push rods to make sure there all good :D B)

Infectus-Guy - December 19, 2008 07:59 PM (GMT)
Tasty writeup! I'm really liking the "idiot proof" bolt pattern on the crank. Not loving the non crossflow inlet/exhaust ports the same side thing, mind you i bet a lot of R5 owners feel the same. Would love to see a 1.7i turbo lump in there one day! B)
Guy

LEE69 - December 19, 2008 08:21 PM (GMT)
QUOTE (C5 SWH @ Dec 18 2008, 08:12 PM)

Yeah kept to standard bore size and compression ratio, from what ive read and been told it seems to be the best set up for the 5 and also gives good reliablity.


Renault got something right then hahahahahaahahahahahahahahaha

Looking good mate.

DumpyDave - December 20, 2008 10:31 AM (GMT)
QUOTE (Infectus-Guy @ Dec 19 2008, 07:59 PM)
Not loving the non crossflow inlet/exhaust ports the same side thing,

Same sort of issues with the A series engine. In one side out the other is a must for air/fuel and exhaust flow. I cant think of any car that uses this in and out same side method today. It must be said though that it does keep the whole engine inlet and exhaust as a small unit for confined spaces.

C5 SWH - January 4, 2009 08:09 PM (GMT)
Due to christmas and new year ive not spent as much time on this as i wanted to but heres what i managed to fit in.

The engine block has been cleaned and painted red, decided to go for a red and black theme to match the cars bodywork.

user posted image
user posted image

I had some paint left over so decided to paint the brake calipers back and front, also repalced the front disks and pads.

user posted image
user posted image
user posted image

Chopper - January 5, 2009 09:57 PM (GMT)
Looking tidy mate - you are the attention to detail king :)

C5 SWH - March 3, 2009 03:56 PM (GMT)
Update 3.3.09

Finally got the ball rolling again, after a few weeks of doing nothing but DIY :rolleyes:

I decided to buy a engine stand as they are not to expensive and it will make my life alot easier during the build. When finished it can easily taken apart and doesnt take any room up B)
user posted image
user posted image

Now on to the crank and pistons, I got recomended a company Big Jim Racing by the owners club They have over 10 years experience in Renault 5 Tuning.
CLICK HERE FOR WEBSITE

They are very helpful and freindly and with the owners club discount very well priced. This company will also be doing my headwork at a later date.

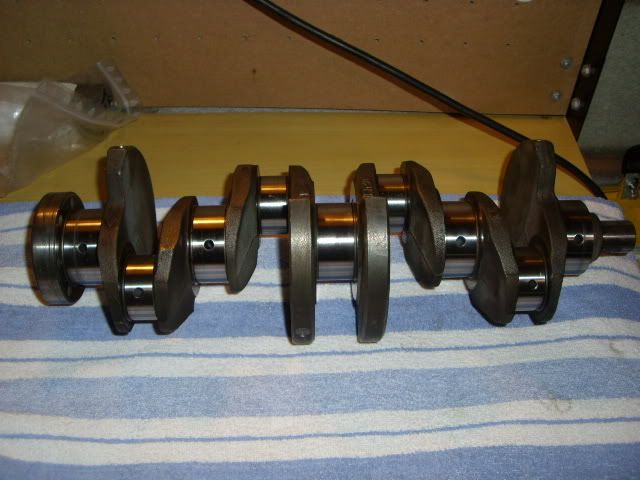

The crank was cleaned and checked, it was then reground to 0.25mm u/s on the both the mains and ends. The crank was then balanced.
user posted image
user posted image

Whilst apart the pistons and rods were then also balanced and fitted together
user posted image
user posted image

Whilst i was waiting for these to be sent back i began to collect some more parts for rebuild.

Oil pump refurbishment kit
user posted image

Bottom end gasket set
user posted image

Piston ring compresor, silicone sealant for sump, timing cover and Graphogen paste
user posted image
user posted image

Also waiting at the Royal mail office in town :angry: is my new bearings and assembly lube, will pick them up tomorrow and then the fun will begin :D :D :dj:

Infectus-Guy - March 4, 2009 12:35 AM (GMT)
Nothing better than a box full of brand new parts to fit! Good call on the engine stand, just picked one up for my V8. That little block looks lost on there!
Guy

DumpyDave - March 4, 2009 09:03 AM (GMT)
Nice to see some progress. Did the crank journels need grinding? I just had mine polished as there was only very light marks on it. Worth getting everything balanced whilst it's out B)

Also nice to see the pressure of lou's thumb has finally let up :haha:

C5 SWH - March 5, 2009 08:00 PM (GMT)
Picked up the bits from Royal mail today, hopefully can get building soon B)
user posted image

DumpyDave - March 6, 2009 10:46 AM (GMT)
QUOTE (C5 SWH @ Mar 5 2009, 08:00 PM)
Picked up the bits from Royal mail today, hopefully can get building soon B)
user posted image

Snap - I've just got a bottle of the engine assembly lube B) And some big ends and mains

C5 SWH - March 9, 2009 07:02 PM (GMT)
Update 9/03/09

Had a spare half hour today so fitted the liners to the block.

First of all temporay fitted the liners and measured the protrusion of the liners to double check and make sure they were within the tolerances given in the manual. This was simply done be using metal ruler and a feeler guage.

Next fiited the O seals to the liners and also added a smear of sealant.
user posted image
user posted image

In they go
user posted image
user posted image

The liners were then held in place using the old headbolts, nuts and washers. This will prevent damage to the base seals when the engine is turned upside down on stand.
user posted image
user posted image

Chopper - March 9, 2009 09:01 PM (GMT)
good work Shane. What paint did you use on the block ?

Puddleduck - March 10, 2009 06:16 PM (GMT)
Looks the same colour as Lou's car!! Good to see some progress on the R5!! :D

C5 SWH - March 10, 2009 06:36 PM (GMT)
QUOTE (Chopper @ Mar 9 2009, 09:01 PM)
good work Shane. What paint did you use on the block ?

I just used high temperature engine enamel which was on ebay. Only cost 5 and i give the block 2 coats, painted all my brake calipers and still got half a tin left. B)



C5 SWH - March 25, 2009 06:58 PM (GMT)
update 25/3/09

Some more progress today first of all fitted the new piston rings,
user posted image
user posted image

Then fitted main bearings to the block and caps.
user posted image
user posted image

New thrust washers
user posted image

Crankshaft oil seal fitted, grease up the bearings with graphogen then crank put into block.
user posted image
user posted image

refit caps and torque them up
user posted image
user posted image

Next onto fitting pistons
user posted image
user posted image

All in and torqued up
user posted image
user posted image
user posted image
user posted image

Starting to take shape now B) :D
